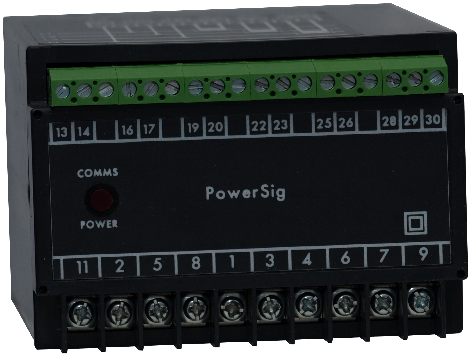

The M560 is a fully programmable three phase power transducer with
an isolated RS485 based communication port supporting a subset of
Modicon's Modbus protocol.
It also features up to three isolated analogue outputs.
Its accuracy is class 0.25% for voltage and current input signals
down to 10% Un and 10% In, 0.3% for power measurements and 1% of
reading for energy measurements.IEC1036, 50-60Hz.
The M560 measures Voltages, Currents, Import/Export Power (W, VAr,
VA), True Power Factor, Frequency, Import/Export Demands(Wd, VArd,
VAd, Ad) and Import/Export Energy (W.h, VAr.h, VA.h, and A.h, pulsed
through a relay)
All measured quantities can be extracted from the transducer, the
system's parameters can be set up remotely, important data can be
saved to computer and the order of the Modbus registers themselves
can be changed.
The analogue outputs can be assigned to most of the measured parameters
and configured remotely.
The relay installed in the M560 can also be used as a simple monitoring
relay.
|
