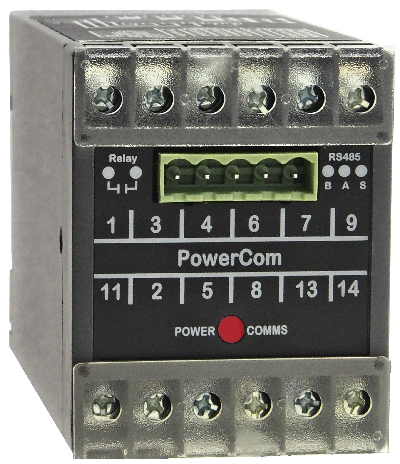

The M553 is a fully programmable three phase power transducer with
an isolated RS485 based communication port supporting a subset of
Modicon's Modbus protocol.
It is powered by a high voltage ac/dc universal power supply or a low voltage dc
supply.
Its accuracy
is class 0.25% for input signals down to 10% Un and 10% In, (1% of
reading for energy measurements.IEC1036), 50-60Hz.
The M553 measures
Voltages, Currents, Import/Export Power (W, VAr, VA), True Power
Factor, Frequency, Import/Export Demands(Wd, VArd, VAd, Ad) and
Import/Export Energy (W.h, VAr.h, VA.h, and A.h, pulsed through
an optional relay)
All measured
quantities can be extracted from the transducer, the system's parameters
can be set up remotely, important data can be saved to computer
and the order of the Modbus registers themselves can be changed.
The optional relay, when installed
in the M553, can have up to 8 conditions attached to it creating a very flexible monitoring
system.
N.B. The easiest way to read or write relay settings
is to use the MultiView
program
A dc version of the M553 is available.
It measures dc Voltage,
Current, Power, import and export energy, demands and hours run.
|
